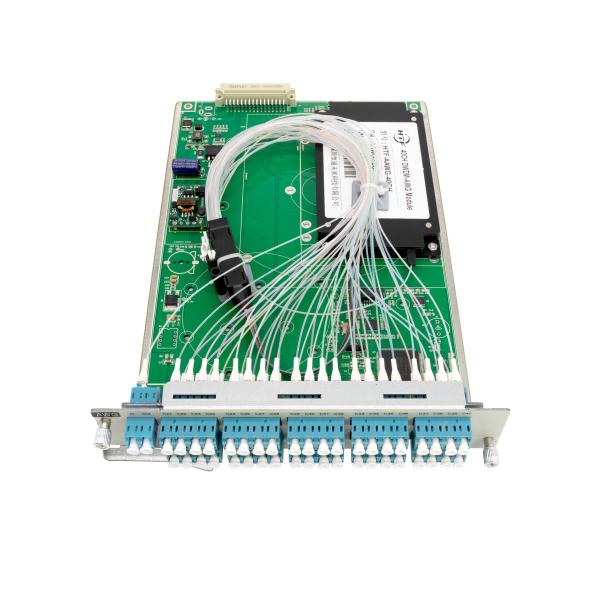

40ch AWG Array DCI DWDM Device Waveguide Grating System

40 AWG Wavelengths Multiplexing/Demultiplexing Card for Telecom/Datacenter/5G Network

AWG photosynthetic wave solver is part of the OSP3800 DWDM system. AWG photosynthetic wave dissolver can be assembled on 2U and 6U management sub-frames. Its main function is to synthesize multiple single-channel optical input signals with a specific wavelength into an optical signal with a 100GHz wavelength interval.

Product Features

• Super capacity: single card adopts 40 wave/48 wave compatible design;
• Easy maintenance and replacement: the board adopts a modular design and supports a hot plug
• High isolation: adjacent isolation ≥ 25dB, non-adjacent isolation ≥ 35dB
• Ultra-low insertion loss: insertion loss ≤ 5dB, typical value 4.5dB
• Unified insertion loss: 48-wave AWG channel insertion loss difference <0.6dB

Product Diagram

Product Application

• Telecom
• Datacenter
• 5G Network
• Long Haul Network

Functional Structure

Product Specification
