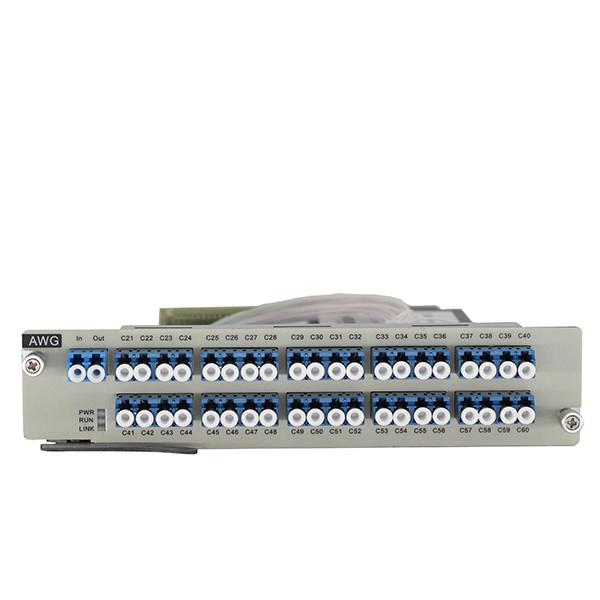

Plug Play Multiplexer Device DWDM Mux Network 40 Channel

WDM Bidi Optical Line Protection Switch for Automatic Switching and Monitoring

AWG split-wave card launched by Shenzhen ISEELINK Communication Technology Co. ,Lid. is mainly used in the DWDM system to complete 40 optical wavelength multiplexing and demultiplexing functions in the C-band range, which can multiplex different wavelengths of light into one. Multiple optical channels multiplexed on the same fiber are separated by wavelength on the fiber. It is based on waveguide grating technology on silicon substrates and features a unique heatless package design for precise channel coupling, low insertion loss, high channel isolation and high stability for 40- or 80-wave high-capacity DWDM systems.

Product Features

• 40 Channel Multiplexer and Demultiplexer (MUX & DEMUX)
• Plug’n play: requires no configuration
• Green product: completely passive, needs no power and no cooling
• Low insertion loss, insertion loss ≤6dB, typical: 4.5dB
• Uniform insertion loss variation over the 40-channels - less than 1dB (typical 0.6dB)per MUX or DEMUX
• High channel isolation:adjacent isolation ≥25dB; non-adjacent isolation ≥35dB
• High reliability, MTBF of 100 years

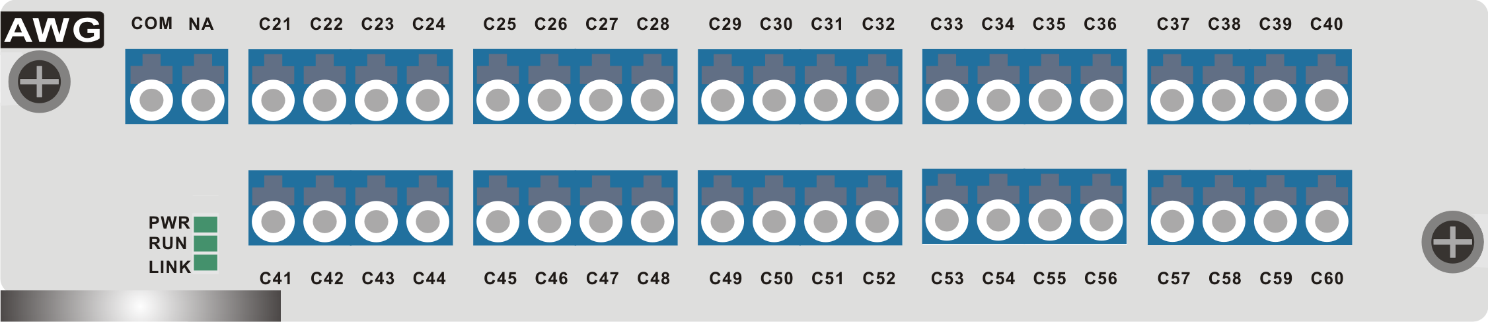

Product Diagram



Product Application

• 40 channel DWDM optical signal multiplexed into one fiber
• 40 channel optical signal demultiplexer to single-wavelength signals

Product Specification
