OADM Optical DWDM Device Demux Multiplexing Card For Datacenter

8ch OADM Optical Add Drop Multiplexing Card for Telecom/Datacenter/5G Network

The OADM board is an important part of the WDM system. It can realize the dynamic reconfiguration of the optical wavelength channel by the OADM module. That is to say, it can dynamically adjust the wavelength resource and fiber path in the optical path layer according to the change of traffic and demand in the transmission network Path resource allocation makes the most effective use of network resources

DWDM OADM modules are available in single-sided (East or West) and dual-sided (East and West) configurations. With matching MUX/DEMUX units placed at each end of an optical link, multiple data channels can be combined and transmitted over a single-mode fiber trunk. The passive OADM modules can add or drop 2, 4, and 8 data channels at any point along the trunk.

Product Features

• Support 2/4/8 channel add and drop
• Plug and play: requires no configuration
• Green product: completely passive, needs no power and no cooling
• Low insertion loss
• 2CH maximum insertion loss <=1.5dB
• 4 CH maximum insertion loss <=3dB
• 8CH maximum insertion loss <=4.5dB
• High channel isolation
• Adjacent isolation >=25dB
• Non-adjacent isolation >=35dB

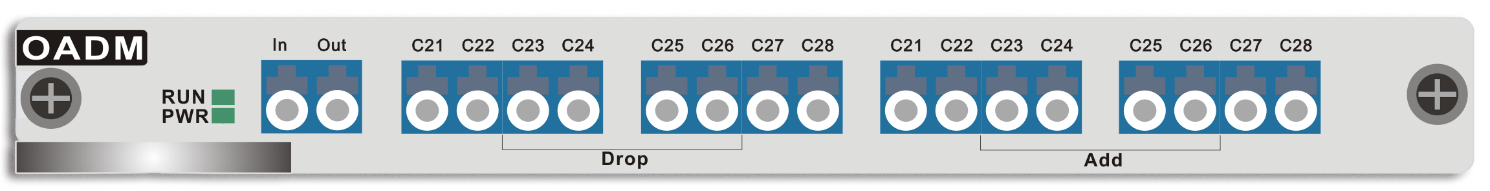

Product Diagram



Functional Structure

Product Application

• Telecom
• Datacenter
• 5G Network
• Long Haul Network

Product Specification
