PFA Immersion Tank Heaters

Categories Inline Chemical Heater
Brand Name: Precise Heater
Model Number: UPH2022
Certification: CSA,UL,CE
Place of Origin: China
MOQ: 1 unit
Price: US$3,000 - 9,000 / unit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 units per month
Delivery Time: 15-25 days
Packaging Details: Export Wooden Case
Material: PFA/PTFE/PVDF
Color: White
Safety Features: Liquid level sensor,Ground wire options
Applications: Semiconductor,Life Sciences,Industrial
SPECIFICATIONS: 1,000 watts up to 30,000 watts
Voltages: 110 to 600 volts, single or three phase
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

PFA Immersion Tank Heaters

PFA Immersion Tank Heaters- Industrial Tank Immersion Heaters


Markets


Semiconductor
Life Sciences
Industrial

Applications

Fluid Heating


Overview

PreciseHeater immersion tank heaters are great for heating fluid baths to a constant temperature. These heaters are ideal for use in the semiconductor, pharmaceutical, and biomedical industries. First of all, these immersion heaters provide clean heat evenly and efficiently. Furthermore, they’re compact and highly customizable. They provide a maximum process work area, and consume a minimal amount of chemicals. Moreover, wetted surfaces feature all-PFA materials, and may be used in tanks made of PVDF, PFA, or quartz. Please contact PreciseHeater with inquiries about other tank materials.


Harsh Chemicals & DI Water

These rugged and durable heaters come in grid, frame, and fence models, with outputs of 1.0 to 30.0 kW. They feature a low watt density (≤ 4 watts/in²) for a fast heating response. These heaters integrate easily into most process tanks. Provide Heateflex with your specifications and tank size, and let us build an immersion heater for you.


Safety Features

At the heart of these immersion heaters is the patented PreciseHeater® heating coil, with a efficiency of > 99% and a MTBF of more than 10 years. Moreover, a microprocessor-based temperature controller regulates the heater output. Additionally, optional safety features include both platinum and embedded ground wires, a Type-J process thermocouple, and RTD over-temperature and process thermocouples.


Highlights

Maximum heating temperature of these immersion heaters is 200º C (392º F), with a temperature accuracy of ± 0.1º C (contingent on customer’s facilitation). Grid heaters are typically ¾” high, and frame heaters 1 ½” high. Outputs range from 1.0 to 30.0 kW (dependent on customer voltage), and from 120 VAC to 600 VAC, 1 or 3-ph (dependent on wattage).


Features & Benefits

  • Ultra-pure design with PVDF/PFA wetted surfaces

  • Reliable heating of harsh chemicals

  • Maximum 200ºC heating capability

  • Low Watt Density; ≤4 watts/in²

  • Maximum power in compact footprint

  • Grid heaters of 3/4-inch heights

  • Frame Heaters of 1-1/2-inch heights

  • Heaters designed to your specifications and process tank sizes for easy integration

  • No N2 Purge Required

  • Microprocessor Based Temperature Control


Specifications

HeaterPatented PreciseHeater® Coil
Wetted SurfacesPTFE/PFA
Sizes1.0kW to 30kW (Dependent on Customer Voltage)
Voltages120VAC to 600VAC 1 or 3ph (Dependent on Wattage)
Temperature200°C (392°F)
Temperature Accuracy±0.1°C (Contingent on Customer's Facilitation)
Efficiency>99 %
MTBF10.29 years

Dimensions

Model
kW
Height
Benefits

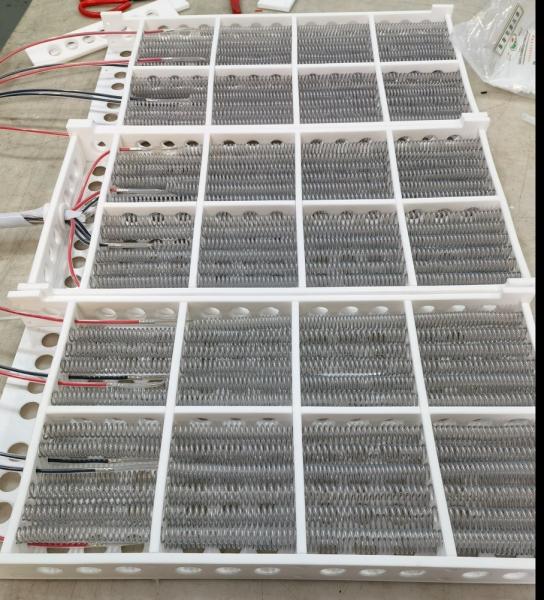

Grid
1-6 kW*
3/4 in
Low Profile Design
Frame
1-30 kW
1-1/2 in
Low Profile Design for Higher kW's

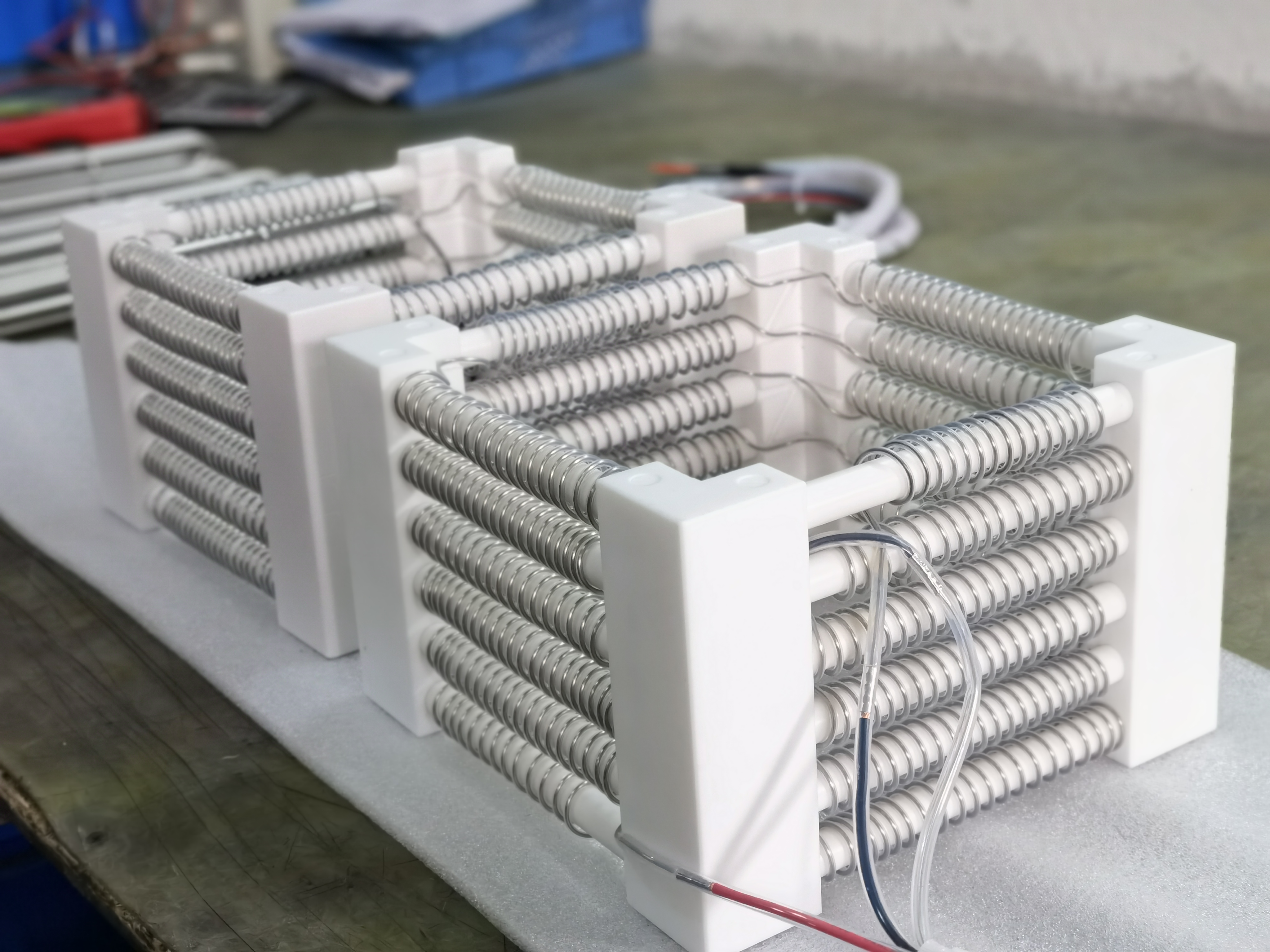

Fence
1-10 kW
Variable
Heater on side of tank leaving center of tank open

*Higher kW available depending on size.


Configuration

  • Platinum Ground Wire

  • Embedded Ground Wire

  • Type J Process Thermocouple

  • RTD Over Temp and Process Thermocouple

  • Perforated Top and Bottom Floor Grid

  • Raised Legs

  • Thermal Fuses

  • Special Cut Grids

  • Air 200 and 300 Controller
