TECHS AND SPECS
• Housing 316L SS construction Pharma/Semi Grade
• Element 316L SS construction Pharma/Semi Grade
• Wattage/Surface Area = Watts per square inch (WSI) 1 kw heater =
8 WSI 10 kw heater = 32 WSI
• Units will not burn out with short periods of no flow
• Units rated to 150 psig standard, custom to 10,000 psig+ • Size
from 8” -24” long | Weight from 3 lbs -12 lbs
• Standard Wattages 500 watts - 300,000 watts
• All units come standard with TC measuring liquid temp

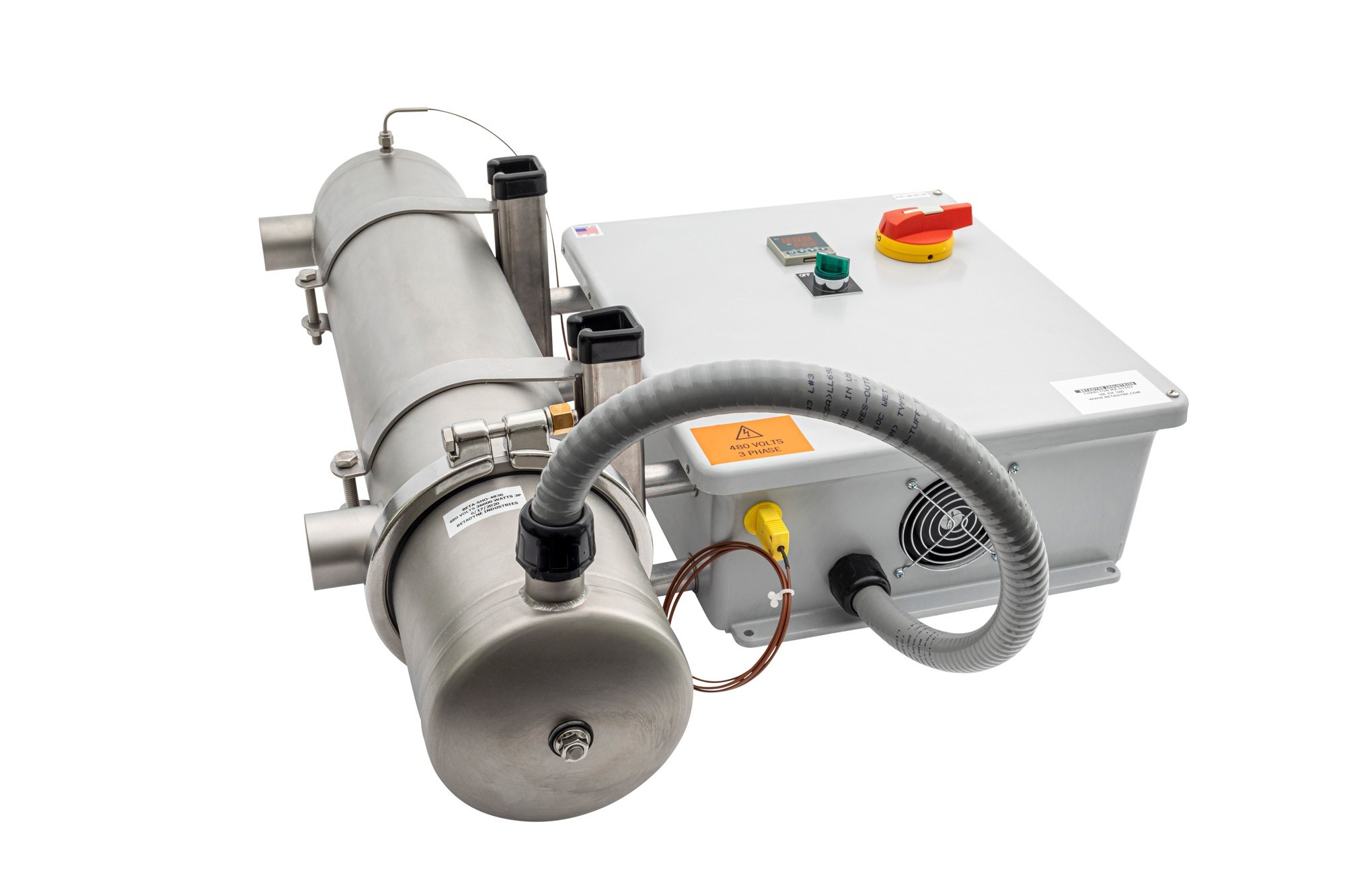

PROCESS CONTROLS
(Available for all heaters) Turn key control systems come with micro processor based Process/PID temperature control solid
state power controls, tuned and ready for operation direct from factory.
Power disconnects are provided with all of our 480 volt control systems. The systems provide +/-1 control capability with stable flow. The controllers can accommodate all types of thermocouple sensors or RTD’s. Temperature controllers can be tuned for every individual process giving you the most stable and uniform control for any process. We will match your heater with the correct control system at your request.
SPECIFICATIONS
Compact heaters up to 1kW - 600kW
Process temperatures to 600° C (1200° F)
Low and high operating pressures
Optional finishes, electro-polished, passivated and bright annealed
All standard fittings, sensors and certifications
Standard type k t/c or 100 Ω Plat RTD 3 wire
APPLICATIONS
• Where compact, hi power, SAFE electric heat is required
• Semiconductor, Pharma, Lab, Food Service: Water, DI Water, N2• Fuel cell gas and liquid heating
• Printing, cleaning, bio-tech, sterilization and plastics
industries • Purification
• Humidity generation
• Metal, poly and ceramic parts cleaning
CRES-ILB
• Full SS construction 316L Heater element
• Ultra Low Watt Density Heater: 5-32 wsi std • Ultra Fast Response
with large surface area • Temperature Sensor monitors fluid temps
Model | Watts | Volts | Phase | Dim “A” | Dim “B” | Fitting “C” | Dia | Length | Watt Dens | Weight |
CRES-ILB-12 0010-K | 1,000 | 120 | 1 | 12 in | 2 in | 1⁄4 fnpt | 2 in | 12 in | 5 wsi | 3 lbs |
CRES-ILB-12 0020-K | 2,000 | 120 | 1 | 12 | 2 | 1⁄4 | 2” | 12” | 10 | 3 |
CRES-ILB-24 0020-K | 2,000 | 240 | 1 | 12 | 2 | 1⁄4 | 2” | 12” | 10 | 3 |
CRES-ILB-24 0040-K | 4,000 | 240 | 1 | 16 | 3 | 1⁄2 | 3” | 16” | 16 | 4 |
CRES-ILB-208 0040-K-3P | 4,000 | 208 | 3 | 20 | 3 | 1⁄2 | 3” | 20” | 16 | 8 |
CRES-ILB-208 0060-K-3P | 6,000 | 208 | 3 | 20 | 3 | 1⁄2 | 3” | 20” | 22 | 8 |
CRES-ILB-208 0080-K-3P | 8,000 | 208 | 3 | 24 | 3 | 1⁄2 | 3” | 24” | 26 | 8 |
CRES-ILB-208 0100-K-3P | 10,000 | 208 | 3 | 24 | 3 | 1⁄2 | 3” | 24” | 32 | 12 |
CRES-ILB-48 0100-K-3P | 10,000 | 480 | 3 | 24 | 3 | 1⁄2 | 3” | 24” | 32 | 12 |
• All standard voltages available including low voltage apps from
12 volts to 600 volts
• Custom in/out configurations available, with all standard
industry fittings available
• Watt densities available to meet DI Water quality requirements
for any power levels<22wsi
