| Categories | Inline Chemical Heater |
|---|---|
| Brand Name: | Precise Heater |
| Model Number: | UH202 |
| Certification: | CSA,UL,CE |
| Place of Origin: | China |
| MOQ: | 1 unit |
| Price: | US$3,000 - 9,000 / unit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30 units per month |
| Delivery Time: | 15-25 days |
| Packaging Details: | Export Wooden Case |
| Material: | PFA/PTFE/PVDF |
| Color: | White |
| Safety Features: | Liquid level sensor,Ground wire options |
| Applications: | Semiconductor Wet Processes,Solar/Photovoltaic Wafer Cleaning |
| SPECIFICATIONS: | 1,000 watts up to 18,000 watts |
| Voltages: | 200 to 600 volts, single or three phase |
Ultra Pure Inline Fluid Heaters For Semiconductor Solar Cell Wafer Manufacturing

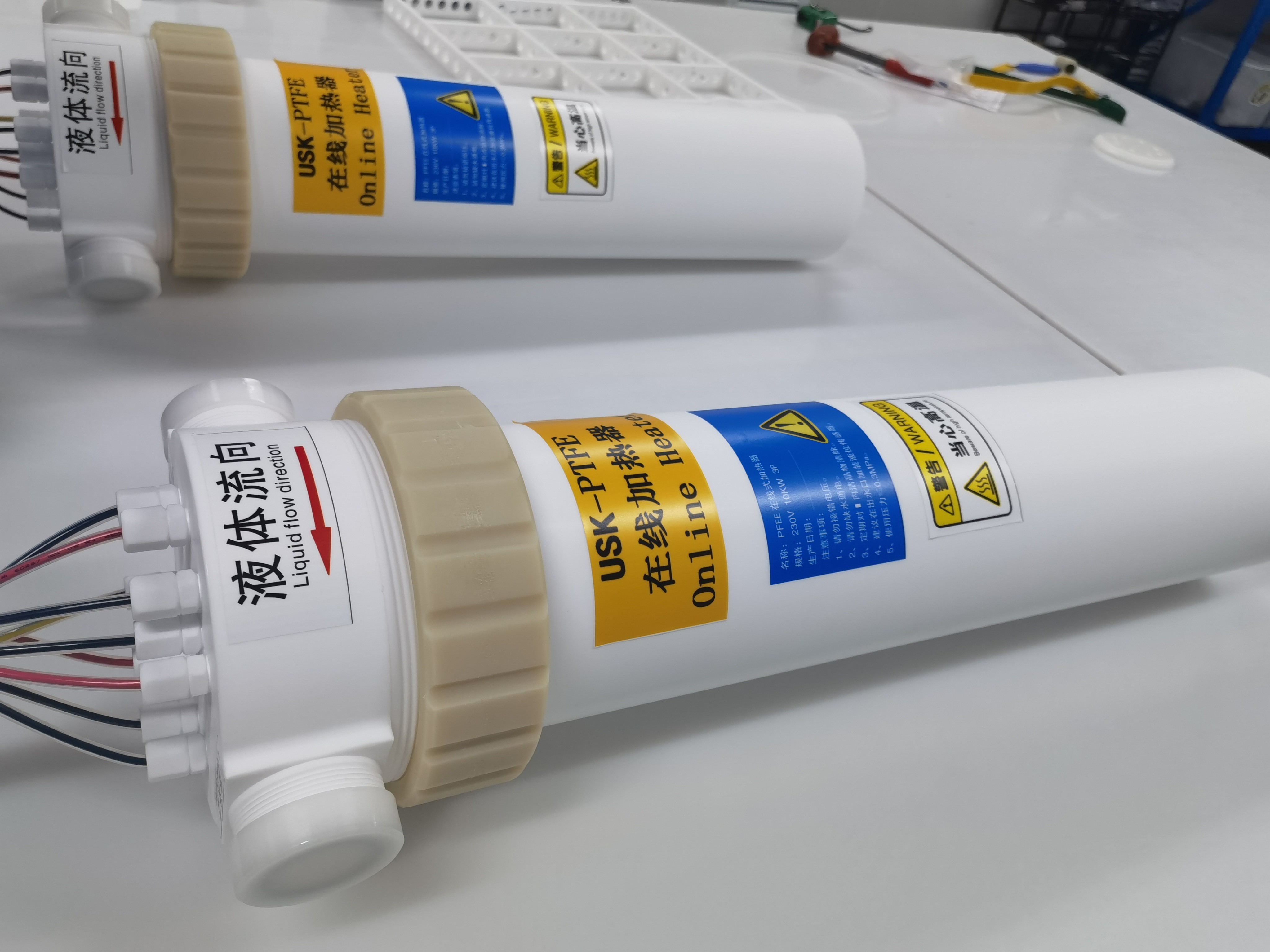

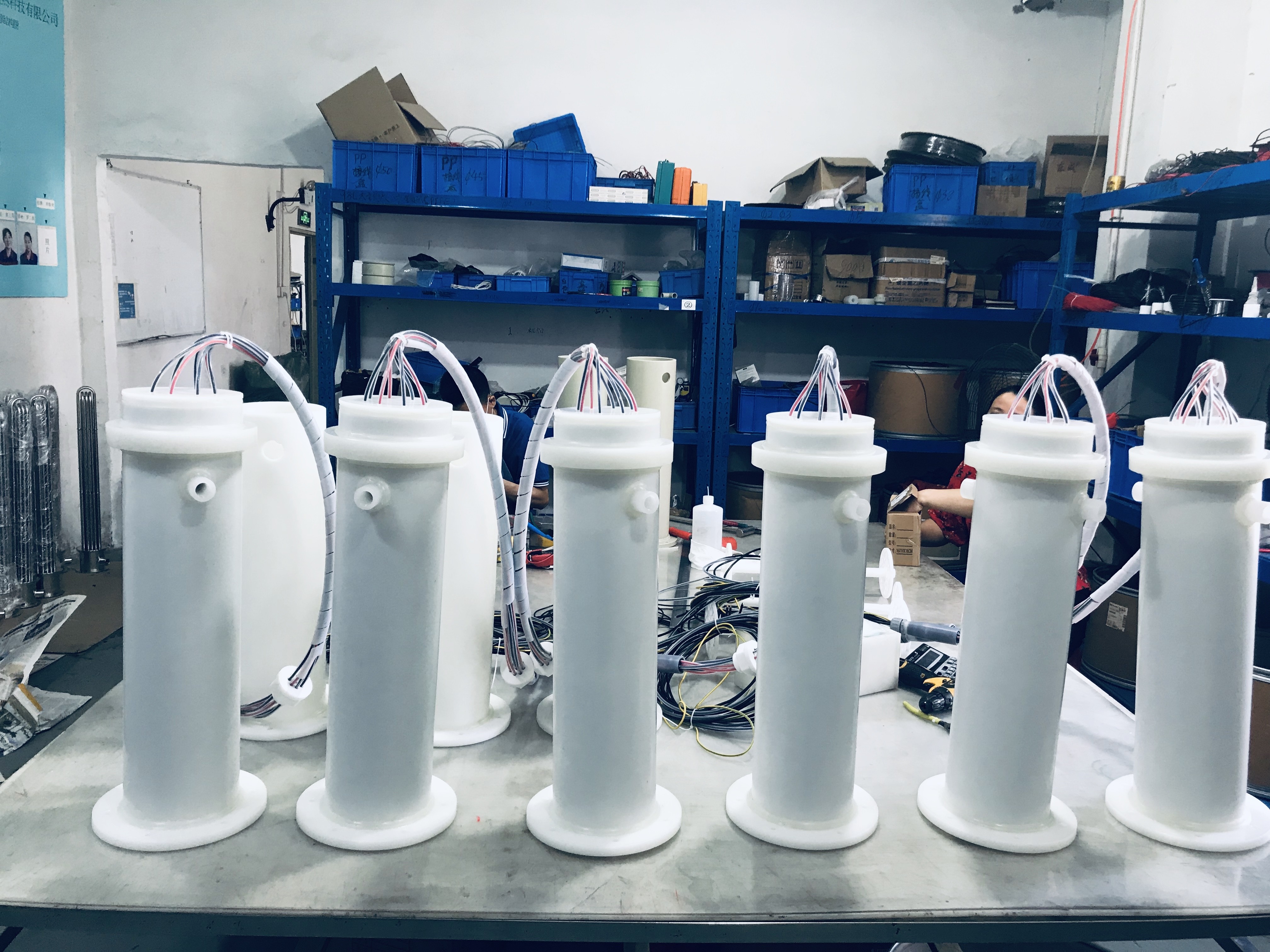

Ultrapure In-Line PVDF/PFA Fluid Heaters
PreciseHeater® series of Ultra-Pure In-Line Heaters are designed for use in industrial fluid heating applications such as semiconductor, solar cell wafer manufacturing, and otherapplications which require the most exacting standards of purity. Constructed of the highest-quality fluoropolymer materials, these heaters are custom designed and built for use with deionized water, acids, and other diverse process chemistries.
Benefits
Heated chemicals at the point of use
High efficiency and purity
High reliability and low maintenance
Compact size for ease of installation
No nitrogen purge required
Maximum Heating Efficiency
PreciseHeater® heating technology provides the most efficient
thermal response of any ultra-pure fluoropolymer heater on the
market. At the core of PreciseHeater® heaters is our low mass, specialized heating coil with all PFA
wetted surfaces. This patented heating element allows for a rapid
response to process demands. Because of the low mass of the PreciseHeater® heating element, In- Line heaters are able to reach temperature
set points in the shortest possible amount of time with a more even
heat distribution.
Compact
Our compact heaters have a minimal footprint for ease of
integration. PreciseHeater® In-Line Heaters typically are 10” to 30” tall and range from 6”
to 12” wide depending on the power requirements, model, and
options.
Features
• All-fluoropolymer wetted surfaces
• Microprocessor-based temperature controller
available with Power-To-Flow® Plus for single-pass
applications
• Heater sizes ranging from 1 to 12 kilowatts • Most voltages
available
Designed and Built to Meet Tough Needs
The PreciseHeater In-Line Heaters are ideal for recirculation and
point of use applications where maximum purity and compatibility
are required. For ultra-pure applications that utilize deionized
water or for applications where aggressive chemistries may be used,
such as acids, solvents, and etchants, we off er heaters that are
compatible to the process. All of these heaters are available with
a variety of connection options and interfacing options to
integrate with the customer’s tooling and requirements.
PVDF & PFA or All PFA Wetted Surface
For applications requiring heated DI water, heaters with PVDF and
PFA provide an eff ective heating solution. For applications
utilizing aggressive process chemistries and temperatures over
140°C, all PFA wetted surfaces off er the highest level of purity
and durability.
Applications
Semiconductor Wet Processes
Sterilization/Cleaning
Solar/Photovoltaic Wafer Cleaning
Liquid level sensor
Ground wire options
Over-temperature thermocouple
Process thermocouple
Options
Thermal cutoff
Thermocouples
Fiber-optic liquid level sensor
RTD sensors
Pressure relief valve
Model | LH1 | LH7 |
Wetted Material | PVDF/PFA | PVDF/PFA |
Housing Material | Pipe | Pipe |
Max Temp | 95°C | 95°C |
Pressure | 60 psi at 95°C | 60 psi at 95°C |
Power* | 1-15 kW | 1-18 kW |
Accuracy | ± 0.1o C | ± 0.1o C |
Voltages** | 200-480 VAC, 1 and 3-phase | 200-600 VAC, 1 and 3-phase |
Flow | 0.5-32 gpm (1.9-122 L/min) | 0.5-32 gpm (1.9-122 L/min) |
Benefits | Variable height | Higher flow, kW |
|
